China Professional Manufacturer Stainless Steel Conveyor 5tons
Chain And System Parts
Product Introduction
ITEM/MODEL
| UH-5075-S | UH-5075-HH | UH-5075-HV | UH-5075-HA |
Suspension spacing | 150 | 150 | 150 | 150 |
Chain's weight | 4.2 | 4.58 | 4.83 | 5.3 |
Single-span weight
| ≤35 | ≤40 | ≤45 | ≤50 |
Chain's allowable pull force
| ≤3000 | ≤3000 | ≤3000 | ≤3000 |
Chain's catastrophic pull force
| ≥5500 | ≥5500 | ≥5500 | ≥5500 |
Working temperature | ≥250 | ≥300 | ≥300 | ≥400 |
Product specification
Advantage
* Large angle bending space
* High mechanization & automatization
* Close -up continual conveying equipment
* Work perfectly together with the ground facilities
* Make any turns on both horizontal plane and vertical planes
Application
Conveyor chain is closeup continual conveying equipment widely
applied for continual convey of various industrial work pieces,
such as surface treatment, powder coating, paint spraying, drying,
oven, cooling room and plaing the finished products off the line,
furniture factories, bicycle plants,electronic products factory,
hardware factory.

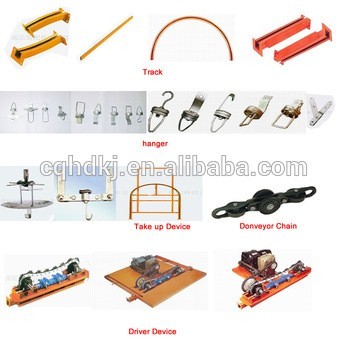

Other Accessories
Other spare parts for Cheap overhead trolley chain conveyor powder
coating
Track: Used where the conveyor chains go straight. Standard length
for delivery is 3 meters. It can be cut to its use according to its
specific installing conditions.
Driver Device: standard type, heavy-duty type;
Operating principle: the driving device adjusts the momentum that
the motor output, after the power increased by speed reduction, it
will pass to driving caterpillar, the pusher dogs will stir the
chain to move forward.
Take up Device: it is to keep the chain in the state of original
tension, compensate the tensile deformation caused by tensile force
or temperature while working. Make sure certain tensile force
exists between driving device and take-up device. It is usually
placed on the back. Heavy type take-up device is depended on the
weight of the heavy plate on device, to adjust the looseness and
tenseness of the chains so as to assure the normal operation of the
driving device. Relatively stable tensile force and widely applied.
Hanger: Cross type disk hanger, sprocket wheel hanger, Y type
hanger, Cross type hanger, electroplating hanger, U type
Hanger,Bearing hanger
Other Accessories: hanger turner, track flange, track install
hanger,check track, Manual /automatic oil feeding cup Automatic oil
sprayer
FAQ
1. Chain Material:16# Medium-carbon steel, Steel A3
2. Track material: Steel A3
3. The drive system better to be 5~7 meters after the adjust seat
4. If dont move, check if any straight and curve rails; check the
motor and chain; check if use high temperature chain lubricant
5. If chain fall of the drive, check the driving wheel
Contact
We have professional engineer to design you a whole overhead
conveyor chain line.
