    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ

    Ask Lasest Price
    Brand Name : THD
    Model Number : HD538
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 100 pcs per day
    Delivery Time : According to your qty
    • Product Details
    • Company Profile

    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ

    Infrared Technology Feature.
    Chongqing HaoDong Technology Co., Ltd, is only one in China and one of few companies worldwide who can actually manufacture CATALYTIC emitter. It's called Infrared Catalytic technique, different from infrared ceramic heater or infrared heater.This product is made for barbecue oven, grill,chicken gas roaster, shawarma/ doner/kebab/gyros machine,bread oven,cake bakery equipment,cheese baking machine.
    SN
    Items
    Technical Parameters
    1
    Kinds of Gas
    NG/LPG/Oil Field Gas/Artificial Gas
    2
    Perfect Combustion Temperature
    ≤380℃
    3
    Heat Source Temperature
    850℃
    4
    Heating-up Temperature Range
    35℃-500℃
    5
    Wavelength Range
    4 um -15 um
    6
    Working Pressure
    2000pa(NG)~~5000pa
    2800pa(LPG)~~5000pa
    7
    Lifetime
    Above 11000hrs
    8
    Waste Gas Emission
    CO≤80ppm;NOx≤10ppm;CHx≤50ppm
    9
    Conversion Rate
    > 90%
    Product Description

    Gas,LPG Infrared Ceramic Catalytic Burner for BBQ Grill HD538

    Main Material:

    1. Shell: aluminized steel sheet 2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated 3. Nozzle: brass 4. Up cover: stamped stainless iron

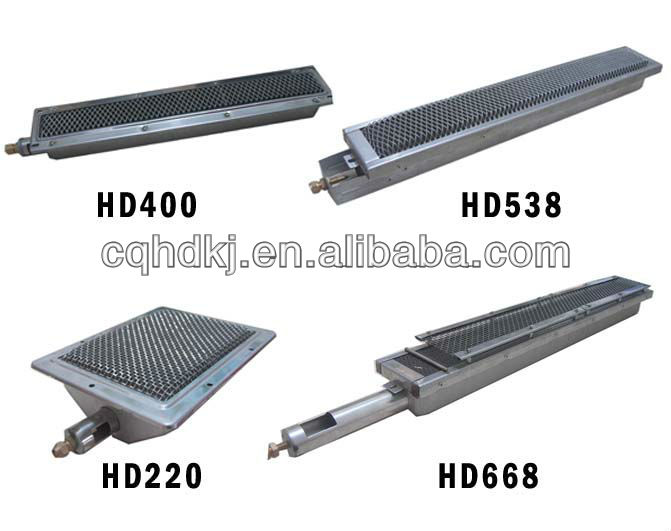

    Gas BBQ Grill Series Infrared Burner Main Specification:
    Model
    Dimension
    N.W.
    Heat Output
    Gas Consumption
    Gas Resource
    mm
    kg
    BTU/h
    Kcal/hr
    NG(m³/h)
    LPG(kg/h)
    HD220
    220*170*60
    0.9
    10000
    2520
    0.31
    0.22
    Natrual Gas,LPG, Propane, Butane
    HD400
    400*80*60
    0.7
    9030
    2300
    0.28
    0.20
    HD538
    538*85*65
    1.4
    13500
    3400
    0.42
    0.29
    HD668
    668*85*65
    1.7
    16600
    4180
    0.51
    0.36
    HD10
    170*65*60
    0.42
    7500
    1600
    0.17
    0.12
    HD20
    300*65*60
    0.59
    9400
    1800
    0.20
    0.15
    HD30
    340*65*60
    0.7
    9500
    2500
    0.29
    0.2
    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ
    Related Products:
    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ
    Our Advantages

    1. Easy being fixed.
    2. Energy savings can be up to 20% per year
    3. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
    4. No need for a long and expensive preheating, it will reach comfort temperature very quickly.
    5. Long useful time: ≥11000hr
    6. Easy to clean
    7. It can cut off the gas automatically and protect the burner when the flameout.
    8. Silent, light and compact
    9. High efficiency: it can come to working condition in 8seconds.

    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ
    Application

    This kind burner now are Mainly used for barbecue oven , grill, chicken gas roaster , shawarma/ donner/kebab/gyros machine, bread oven,cake bakery equipment, cheese baking machine…
    and can be installed at all directions, but at bottom with a heat resistance glass cover is best.

    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ
    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ
    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ
    For More Products
    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ

    Products Name with link

    91.8% Response Rate

    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ

    Products Name with link

    91.8% Response Rate

    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ

    Products Name with link

    91.8% Response Rate

    Company Introduction

    Chongqing Haodong Technology Co., Ltd which is found in 2005, is a professional manufacturer of Infrared Catalytic Gas Burner,BBQ Grill Gas Burner, Poultry heater, Gas brooder and Patio Heater etc.
    Unique Rare-earth Catalyst Technology has gotten Patent certificate, it makes our burner to save 15~25% gas energy than non-catalytic type.Located in Chongqing City, southwest of China.
    We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities. Professional engineers and technicians are employed could meet customer's new requirements demand.
    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ
    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ
    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ
    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ
    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ
    Packing & Delivery
    Flameless Infrared Ceramic Gas Burner For Kamado Gas Grill BBQ
    Packaging
    Size
    510 (L) * 440 (W) * 410 (D)
    Weight
    25kg
    Packaging Details
    The normal package is carton
    Corlor carton is customized
