    I Beam Trolley Overhead Conveyor Chain Heavy Duty X348 X 458 X678

    Ask Lasest Price
    Brand Name : HD
    Model Number : 5075
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 m each week
    • Product Details
    • Company Profile

    I Beam Trolley Overhead Conveyor Chain Heavy Duty X348 X 458 X678


    I beam Trolley Overhead Conveyor Chain heavy duty X348 X 458 X678 Specification


    ChainX348X458X678
    Separation of suspenisonT=76.2mmT=100mmT=160mm
    Chain's catastrophic pull force110KN220KN400KN
    carriage limite load (kg)300500800
    Carriage allowable load150250500
    TrackI 10 / I 12I 12 / I 14I 14 / I 16
    Minimum horizontal radiusR305R317R404
    Minimum vertical bendingR1500R2000R315

    I beam Trolley Overhead Conveyor Chain heavy duty X348 X 458 Specification

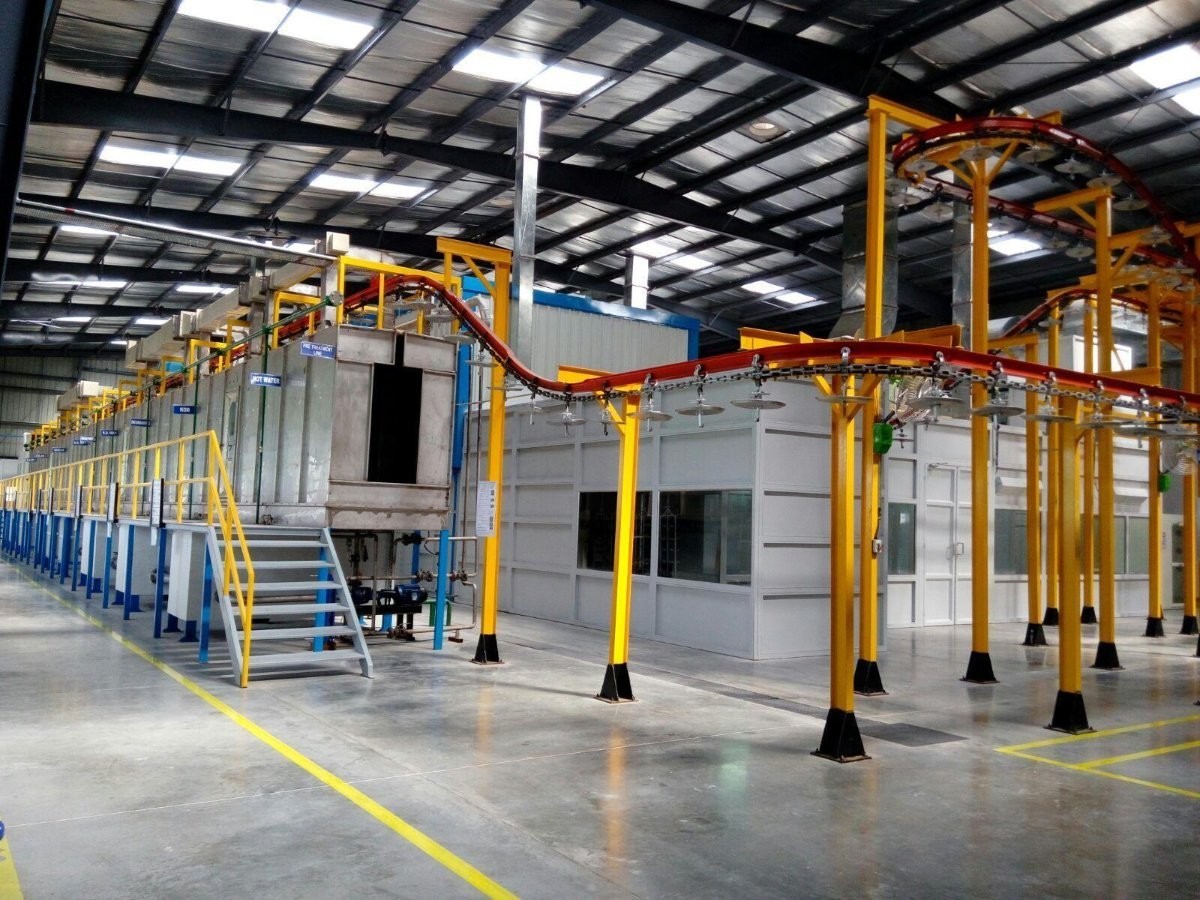

    The overhead conveyor is used to fit requirements of a diverse range of applications. The load carrying capacity is up to 500 Kg. It suitable heavy workpiece. The conveyor is fitted with special design chain suitable for carrying the material over horizontal and vertical curves. There is trolley for hanging and carry. Long distance transport or storage of goods is possible by Haodong conveyor which can be mounted from roof structure keeping the floor space free.



    I beam Trolley Overhead Conveyor Chain heavy duty X348 X 458 Feature


    1.Available in 3″, 4″ and 6″ conveyor track heights
    2.Heavy duty forged chain and trolleys. It could loading heavy product more than 100KGS
    3.Welded design for rugged, long term use
    4.Drop forged, rivetless chain is highly flexible and requires no tools for assembly overhead conveyor chain
    5.Open track and chain design, all components are exposed and visible.

    I Beam Trolley Overhead Conveyor Chain Heavy Duty X348 X 458 X678
