    Hanging Conveyor Transmission Roller Chain For Jeans Laundry Garment Factory

    Ask Lasest Price
    Brand Name : HD
    Model Number : 5075
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 m each week
    • Product Details
    • Company Profile

    Hanging Conveyor Transmission Roller Chain For Jeans Laundry Garment Factory


    Hanging transmission Conveyor Chain for jeans laundry garment factory Specification

    We are the Manufcturer of overhead conveyor chain for more than 10 years. We have rich experience in producing, designing and installing soverhead conevyor chains. It use for industrial fctory for transport a lot .We can provide all the components needed to hanging conveyor chain and also could calculate the required materials according to the customer's design .


    MODEL ITEM

    UH-5075-S

    Standard chain

    UH-5075-HH

    Heavy-duty chain


    UH-5075-HV

    Heavy-duty chain

    UH-5075-HA

    Heavy-duty chain

    Suspension Spacing

    (mm)

    150+(150× N)150+(150 × N)150+(150 × N)150+(150 × N)

    Chain's Weight

    (kg/m)

    4.24.584.835.3

    Single hanger loading ability

    (≤kg)

    35404550

    Chain's Allowed

    Pull Force (≤kgf)

    3000300030003000

    Chain's Catastrophic

    Pull Force (≥kgf)

    5500550055005500

    Working temperature

    (≤°C)

    250300300400
    Applicable EquipmentGeneral conditions

    Large bending;

    High temperature;

    High temperature;

    Heavy work piece;

    Frequently lifted;

    High temperature;

    Heavy work piece;

    Complicated route;

    Material16# Medium-carbon steel, Steel A3
    Remark: The above technical data is for our usual over head conveyor chain: UH-5S, UH-5HH, VH-5HA type. We can customize design and manufacture the products based customers particular requirements


    Hanging transmission Conveyor Chain for jeans laundry garment factory

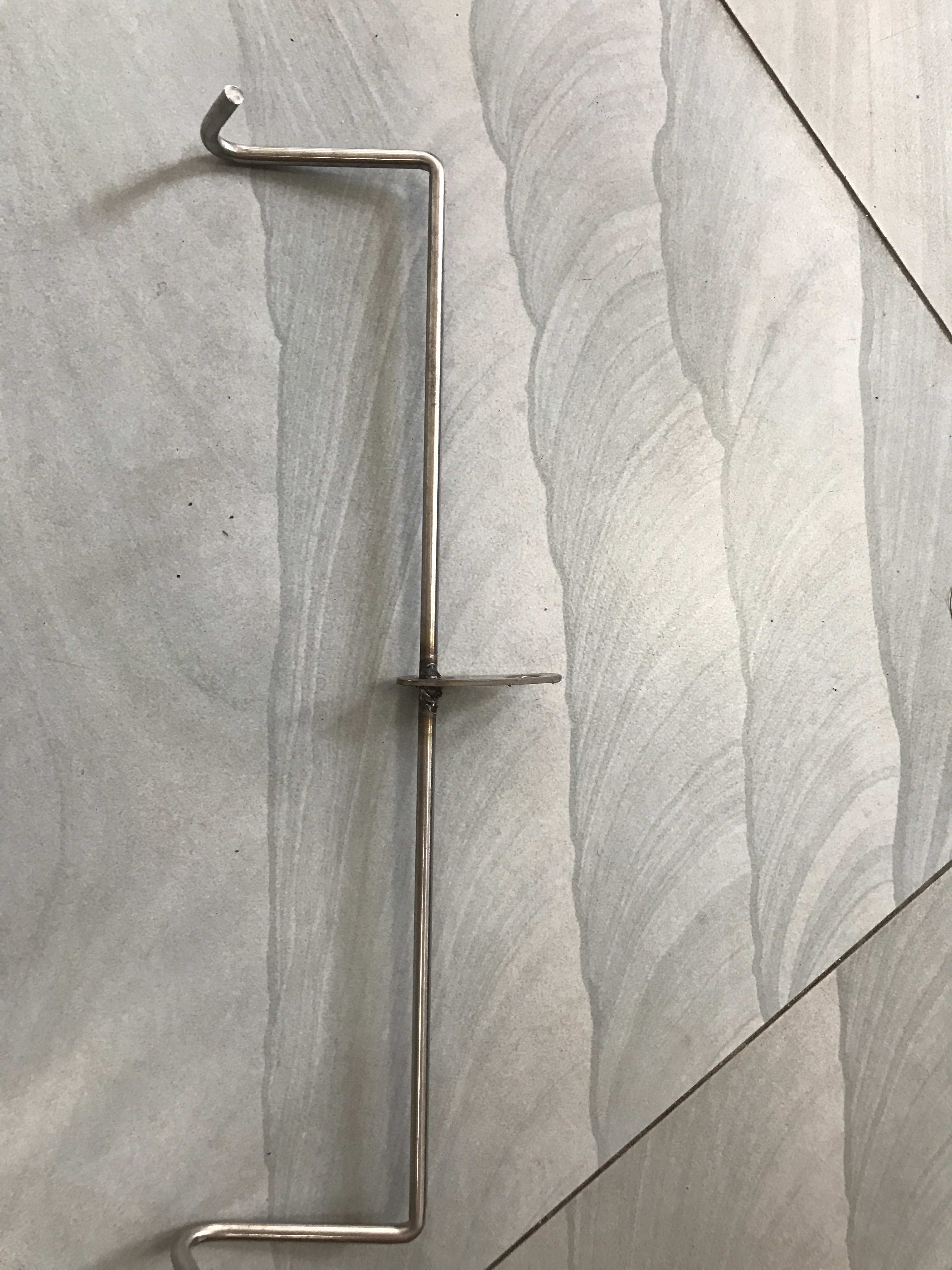

    Our overhead conveyor be most used in garment industrial , our special hangers be used for automatic unloading the clothes, which save the labor a lot. It is a good transport way for jeans transport.

    Hanging Conveyor Transmission Roller Chain For Jeans Laundry Garment FactoryHanging Conveyor Transmission Roller Chain For Jeans Laundry Garment FactoryHanging Conveyor Transmission Roller Chain For Jeans Laundry Garment Factory


    Hanging transmission Conveyor Chain for jeans laundry garment factory Technical data


    1. Chain Material:16# Medium-carbon steel, Steel A3
    2. Track material: Steel A3
    3. The drive system better to be 5~7 meters after the adjust seat
    4. If dont move, check if any straight and curve rails; check the motor and chain; check if use high temperature chain lubricant
    5. If chain fall of the drive, check the driving wheel
