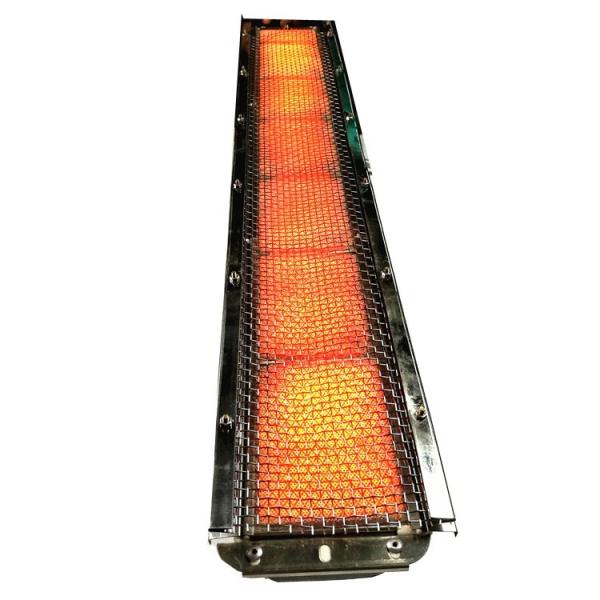

Product Name: Catalytic Bakery Oven Gas Burner Heaters Infrared For
Bakery Pizza Oven HD242
Company Information
We are top supplier of manufacturing infrared catalytic gas burner
in China, we bulit in year 2005, and we have a lots of customers
from all over of world.
The infrared gas burner is good for industrial heating, such as
powder coating oven drying,
Details of Catalytic Bakery Oven Gas Burner Heaters Infrared For
Bakery Pizza Oven HD242
| Item | Infrared gas burner HD242 |
| Spare parts | Ignition pin, pulse igniter, solenoid valve |
| Gas type | LPG, natural gas |
| Heat transfer rate | >95% |
| High efficiency | Start work in 8 seconds |
| Use lifetime | >11000hrs, with right use, can use 3~7 years. |
| Technology | Rare-earth catalyst, save gas 20% |
| Smokeless & Flameless | CO,80ppm, NOx<10ppm, CHx<50ppm |
| Material | Galvanized steel body, cast iron air damper, honeycomb ceramic
plates with catalyst, brass nozzle |
| Usage | Industrial surface treatment; Food baking; Latex/rubber glove drying; fiber/texitle drying; asphalt road drying. |
Specification and Models of Catalytic Bakery Oven Gas Burner
Heaters Infrared For Bakery Pizza Oven
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption |
| mm | kg | | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) |
| HD162 | 570*130*175 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 | 11.7 | 9.4 | 8120 | 0.75 | 0.71 |
| HD262 | 930*130*175 | 13 | 10.9 | 9360 | 0.8 | 0.82 |
Advantages of Catalytic Bakery Oven Gas Burner Heaters Infrared For
Bakery Pizza Oven
· Energy saving: conversion rate≥90% ,save above 20% energy than
non-catalytic burner
· Environmental friendly: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
· Whole combustion: 95% of energy released in the form of infrared
ray; heating the objects directly
· Long useful time:≥11000hr
· Easily installed
The technical parameters
Items
| Technical parameters |
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
| Light-off temperature | ≤350 |
| complete combustion temperature | ≤380 |
Heat source temperature
| around 850 |
| Baking temperature range | 30---550 |
| Wavelength range | 1.9m--15m |
Furnance pressure natural | gas 150mmAq;liquefied petroleum gas 280mmAq
|
| Working pressure | NG:2000~5000pa;LPG:2800~5000pa |
Comparison table for all kinds of energy consumption
Furnace type
Parameters | Electronic cooker
| Oil furnace | Coal-fired furnace
| Infrared catalytic heaters |
Energy requirement
| 10,000Kcal | 10,000Kcal | 10,000Kcal | 10,000Kcal |
| Temperature | 180 | 180 | 180 | 180 |
Energy consumption
| Electricity(15 kW/h)
| Electricity (1Kw/h)+ diesel (2Kg) | Coal (10Kg)
| LPG(0.9Kg) |
Heating time
|
20 minutes
| 40 minutes | 90 minutes | 5-8 minutes |
Application for Catalytic Bakery Oven Gas Burner Heaters Infrared
For Bakery Pizza Oven
Infrared catalytic gas burner is good choice industrial
drying,baking or curing oven,especially in tunnel&converyor
oven......It martched with auto-igntion,safe controller and keep
stable temperature.
A. Industrial surface treatment: liquefied/wet drying oven, curing
spray painting oven, powder coating oven, preheating treatment
equipment.
B. Food baking: snack puffed food such as biscuit, bread, cookies,
egg roll, rice cake; dehydration of fruit, vegetable, spice;
Roasting for fish, duck, chicken and other meat.
C. Other industrial heating: latex/rubber glove drying, paper
drying, fiber/texitle drying, asphalt paving road drying
Applied in bakery oven
Our Services
FAQ:
1. Production leadtime:
Trail order will be 3~7 workdays;
Bulk order will be within 30 workdays.
2. MOQ;
50pcs, less is also OK as trial order.
