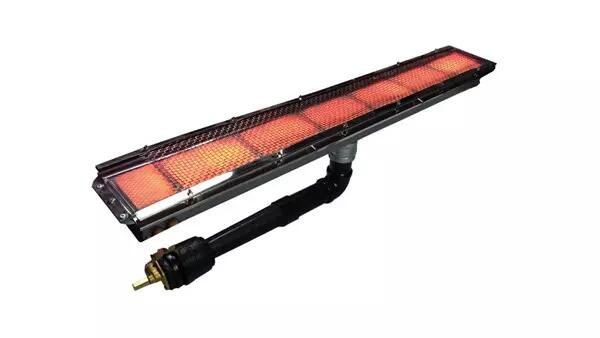

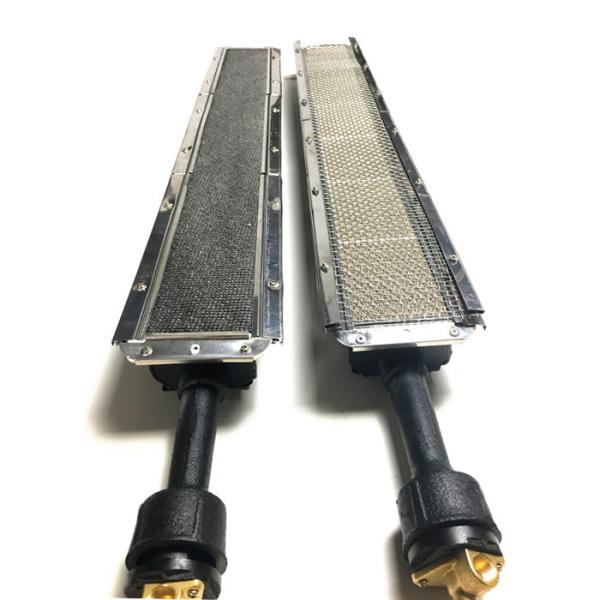

IR radiant Catalytic Gas Burner industrial oven furnace LPG NG propane

usually, there are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn.

Most Equipment is mainly by convection to heat air first and then, it is air second heating way. the heated air transfer to object. Heat loss is big. But, differently, Infrared catalytic burner heat object directly by radiation and transfer rate will be much higher, usually the heat converstion is high to 95%.

IR radiant Catalytic Gas Burner industrial oven furnace LPG NG propane Catalogue

Infrared Ceramic Heater Catalytic Gas Burner Catalogue Technical Data

1. Pressure adjustable
Natural Gas: minimum pressure 2000pa, working pressure: 3000~5000 pa.
Liquefied Petroleum Gas: minimum pressure 2800pa, working pressure: 3000~5000pa. Actual pressure should be adjusted by distance between gas source and burner, far distance adjust higher pressure.
2. adjust burner

Open the damper to get air in and ignite, adjust the damper to control and withdraw the flame.
After the ceramic plate of catalytic gas burner get red, adjust the damper till no naked flame on the surface of ceramic plate. This is flameless burning, there is no need to adjust the burner in after process.

Infrared Ceramic Heater Catalytic Gas Burner Catalogue advantage

Chongqing Haodong Technology Co., Ltd was established in March 2005, over the years we focus on infrared catalytic combustion technology promotion and application in industrial and civil fields.

As the "Efficiency, Energy saving, Environmental protection" technical characteristics, we successfully developed and produced the industrial infrared catalytic burner, BBQ heating parts, poultry brooder and other related products and accessories. They are widely used in the food baking, industrial painting, glass annealing, low temperature heat treatment, ceramic embryo firing, livestock heating industries.

The infrared catalytic combustion technology is a new advanced technology, in the way of infrared radiation heating objects directly. Compared to electric heater, our gas infrared catalytic burner has 95% high efficient energy use, save 15%~20% of operating costs for customers. This technology has obtained a number of technical patent certificates, CE certificates, etc.

It's easy to be installed at any position of 360°. Besides, it's environment friendly when burning, such as no harmful gas, no noise and no extra blowers.

As so many good advantages, our burners are popular exported to the USA, Germany, Colombia, Venezuela, Brazil, Mexico, Australia, India, Philippines, Malaysia, Indonesia and other 20 countries and regions, it's appreciated with good reputation.
