High Efficiency Powder Spraying Machine Overhead Conveyor Coating Line

Our Company

With more than 20 years experience, ChongQing HaoDong Technology Co.,Ltd, specialized in developing and producing infrared catalytic ceramic gas burner & parts, and achieved very good energy saving; Its widely used for powder coating industry.

Other service: we can design the powder coating plant according to your requirements.

We can now provide automatic painting design, manufacturing, installation and service. Professional production and sales: industrial ovens, electric ovens, high-temperature ovens, powder spraying rooms, powder spraying cabinets, water curtain cabinets, oil spraying cabinets, paint spraying tables, oil spraying equipment, tunnel furnaces, UV curing lines

Product Description

The spray equipment uses an automatic current feedback circuit and adds a pulse control circuit. The gas control part adopts two-stage gas source filtration, voltage regulation and air pressure adjustment, all designed as preset adjustments. The powder output is more uniform, the atomization is better, and the dead angle is much better.

The main technology adopts advanced technologies from Germany and Switzerland, and combines China's national conditions to improve and innovate in reliability. Use the digital panel forwarding key. It can change the pulse and normal function, and voltage current display function. With a very high powdering rate and the best coating quality, it is the advanced spraying equipment in China.

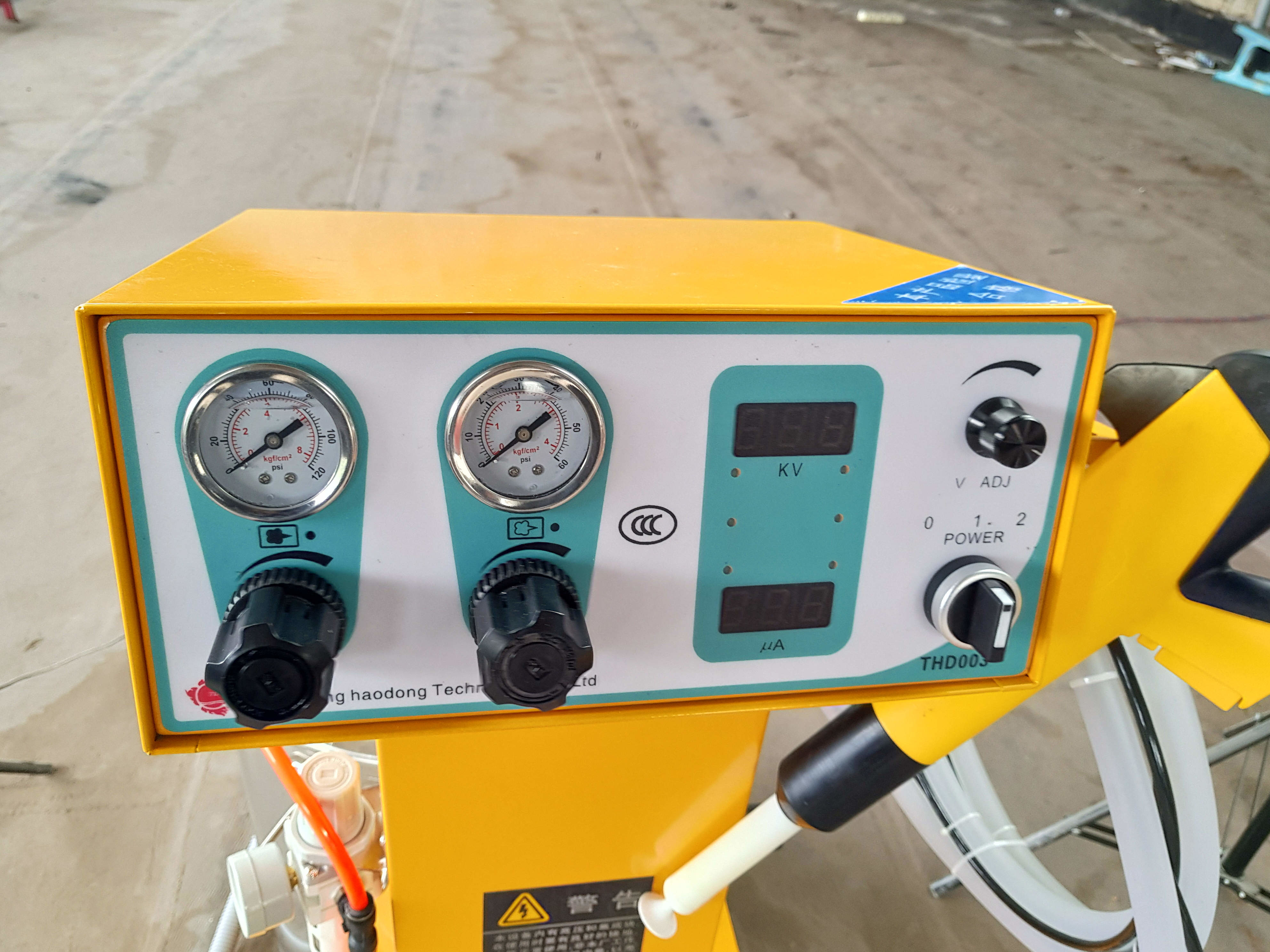

Powder coating machine front and rear panel schematic

1. powder pressure display 2. atomization pressure display 3. powder regulator

4. atomization regulator 5. Voltage display 6. current display

7. potentionmeter 8. power switch

9. Electric socket 10. Spray gun joint 11. Ground

12. Atomization air 13. Concentration air 14,Main air intake

Specification

The safety rules

1. You must read the instructions carefully before use.

2. The operator must wear appropriate labor protection supplies before operation.

3. The spray equipment and the workpiece to be sprayed must be well grounded in the work site.

4. Gloves are not allowed when the worker is in contact with the spray gun.

5. No smoking is allowed in the workplace, and fire is prohibited.

6. After work finished, turn off the power before cleaning the gun and replacing parts.

Use direction

1. Check that all parts of the equipment are installed according to the assembly drawing and connected correctly.

2. Turn on the power, the power indicator light is on, input compressed air, adjust the air supply regulating valve on the rack to make it to be 6BAR.

3. Add the powder to the powder supply bucket for about 2/3 of the best, then adjust the fluidizer regulating valve to make the powder in the barrel flip, but it should not be too heavy to avoid the powder from rushing out of the barrel, after finishing adjustment lock the regulating valve, close the barrel cover and buckle, and connect the exhaust hose to the spray chamber.

4. Hold the spray gun towards the spray booth, press the trigger, adjust the high pressure rotary set, and select the high pressure according to the product (usually 50-60KV for the first spray, 20-30KV for the second or multiple spray ).

5. Adjust the powder air pressure reducing valve. The timing air head indicator is about 2BAR, and the dilution air meter head about 0.1BAR. At this time, the workpiece can be sprayed.

Package

Chongqing Haodong Technology Co., Ltd was established in March 2005, over the years we focus on infrared catalytic combustion technology promotion and application in industrial and civil fields.

As the "Efficiency, Energy saving, Environmental protection" technical characteristics, we successfully developed and produced the industrial infrared catalytic burner, BBQ heating parts, poultry brooder and other related products and accessories. They are widely used in the food baking, industrial painting, glass annealing, low temperature heat treatment, ceramic embryo firing, livestock heating industries.

The infrared catalytic combustion technology is a new advanced technology, in the way of infrared radiation heating objects directly. Compared to electric heater, our gas infrared catalytic burner has 95% high efficient energy use, save 15%~20% of operating costs for customers. This technology has obtained a number of technical patent certificates, CE certificates, etc.

It's easy to be installed at any position of 360°. Besides, it's environment friendly when burning, such as no harmful gas, no noise and no extra blowers.

As so many good advantages, our burners are popular exported to the USA, Germany, Colombia, Venezuela, Brazil, Mexico, Australia, India, Philippines, Malaysia, Indonesia and other 20 countries and regions, it's appreciated with good reputation.
