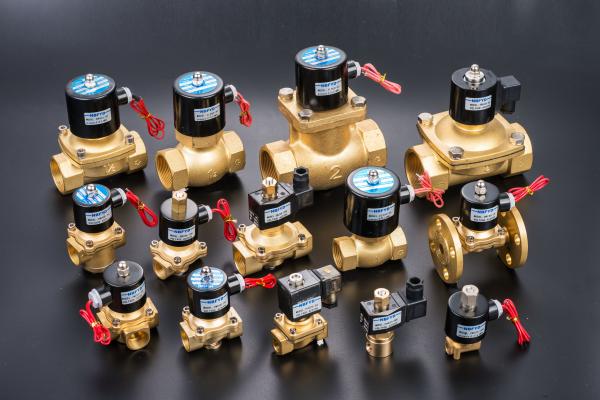

Hydraulic electric AC DC 12v 24v 110v 220v air steam water copper coil brass solenoid valve:
DC - 12V,24V AC - 24V,120V, 240V@60HZ 110V, 220V@50HZ Tolerance: +/- 10%
Coils :S51B, 40VA(AC), 30W(DC), IP65 100%ED
SD01B, 35VA(AC),30W(DC),IP65,100%ED
SD02B,flying lead 35VA(AC),30W(DC),IP65,100%ED

Size: 3/8-2"

Hydraulic electric AC DC 12v 24v 110v 220v air steam water copper coil brass solenoid valve Material:
Body - Brass or Stainless steel
Seal -NBR, EPDM, PTFE or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304

Hydraulic electric AC DC 12v 24v 110v 220v air steam water copper coil brass solenoid valve Characteristic:
1.Direct lifting diaphragm construction;
2.Open from zero bar for low pressure system use;
3.High frequency of DIN plug coil
4.Medium:Air, City Gas, Water, Oil, Petroleum, etc.
5.Pressure:2W21: 0.00MPa ~ 1.0MPa.
6.Port Thread:BSPP ,BSPT ,NPT ,Flange, UNF, M8X1

Hydraulic electric AC DC 12v 24v 110v 220v air steam water copper coil brass solenoid valve Temperature:
NBR Seal: 14F to 176F , -10 to 80
EPDM Seal: 14F to 250F , -10 to 120
VITON Seal : 14F to 300F, -10 to 150.

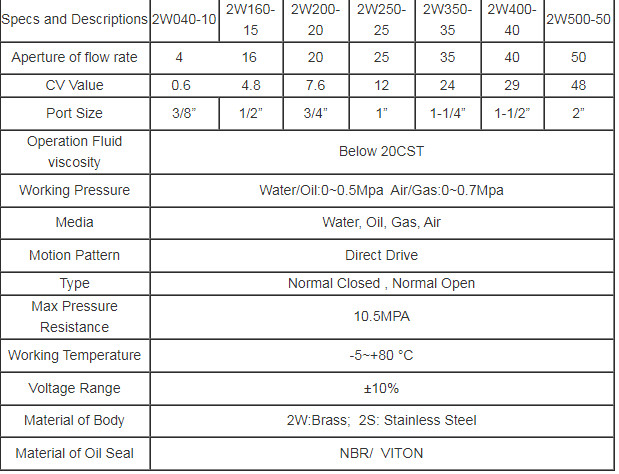

Port Size:3/8,1/2,3/4,1,1 1/4,1 1/2,2
Orifice (mm): 12,15,20,25,32,40,50
