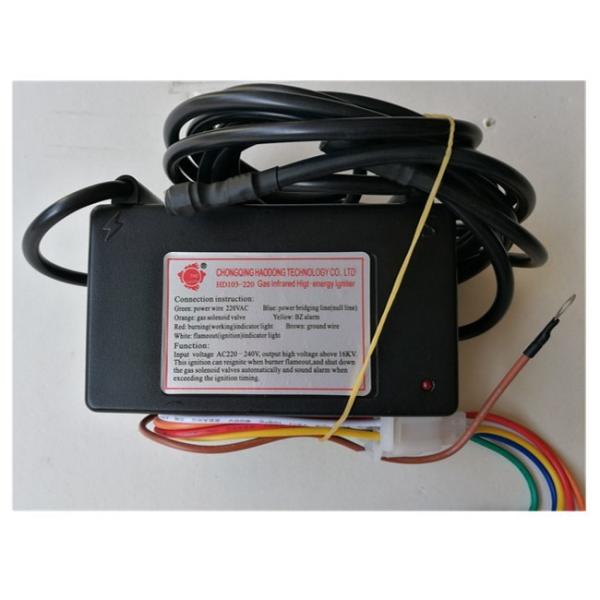

    Industrial Electronic Gas Stove Oven Spark Igniter PP 110V - 240V THD103

    Ask Lasest Price
    Brand Name : THD
    Model Number : THD103
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000pcs/month
    Delivery Time : 5~10 workdays
    • Product Details
    • Company Profile

    Industrial Electronic Gas Stove Oven Spark Igniter PP 110V - 240V THD103


    Product Name: Industrial Electronic Pulse Igniter Oven Ignition Parts


    Product Purpose


    This product is mainly used for the ignition and control of industrial equipment with the energy of liquefied petroleum gas, natural gas and coal gas.

    It is widely used in all kinds of gas burner, stove, cooker,oven,furnace.


    Features:


    1.Safety inspection

    2. Ignition control

    3.Flame-out protection

    4.Fault alarm


    Electric ignition or switching control ignition

    Ignite the gas again automatically if the fire went out accidentally.

    Automatic monitoring or photoelectric control. If the fire went out, it can give warning automatically.

    If it failed to ignite the gas or the fire went out accidentally, it can cut off the gas supply immediately.

    Technology of Single-chip and digital microcomputer

    lightning proof


    Working process


    Industrial Electronic Gas Stove Oven Spark Igniter PP 110V - 240V THD103


    Technical Parameter of Industrial pulse igniter electric oven ignition parts


    NoItemsQuotasRemarks
    1Rated operational voltageVAC
    2Discharge frequency50HZ
    3Arcing distance≥6mm
    4Duration of ignition10sIt can be adjusted according to your requirements
    5Duration of rekindling10s
    6Discharge energy≥4J
    7Discharge cycle≤400ms
    8Width≥12μs
    9Deferent high pressure≥15KV

    Detail picture for Industrial pulse igniter electric oven ignition parts





    Technical parameter of Industrial oven ignition parts electric pulse igniter GM103


    NoItemsQuotasRemarks
    1Rated operational voltage110/220VAC
    2Discharge frequency

    50HZ

    3Arcing distance≥6mm
    4Duration of ignition10sIt can be adjusted according to your requirements
    5Duration of rekindling10s
    6Discharge energy≥4J
    7Discharge cycle≤400ms
    8Width≥12μs
    9Deferent high pressure≥15KV

    Application of Industrial oven ignition parts electric pulse igniter GM103
